¡´Designed for general purpose to suppress. ¡´Power Entry modules filter with integrated Power Switch and Fuses. ¡´CPFM type is especially used in medical equipment. ¡´B type has with LED indicator. ¡´Safety and construction are in compliance with UL,TUV, standards.

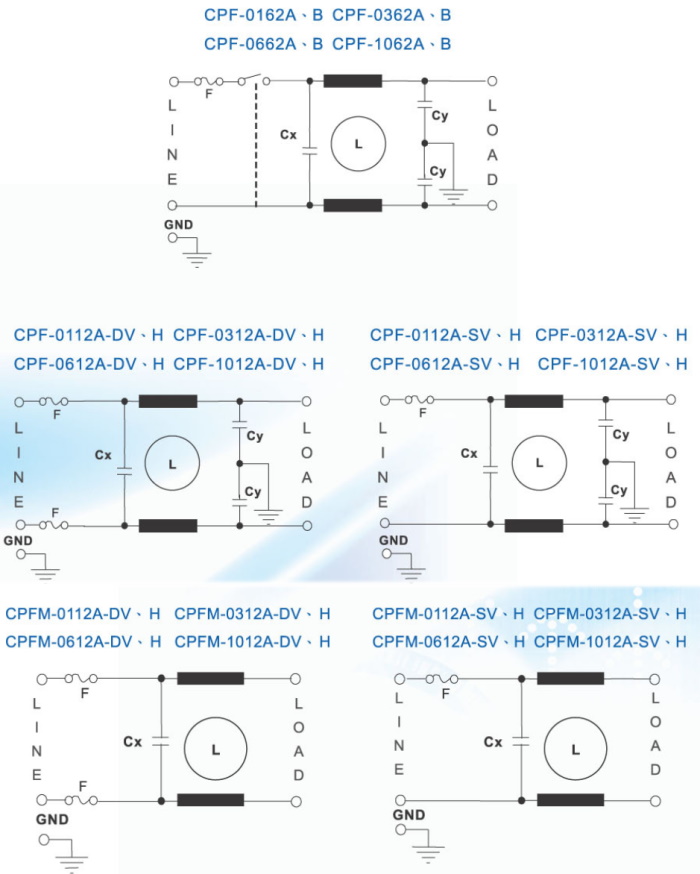

CIRCUIT

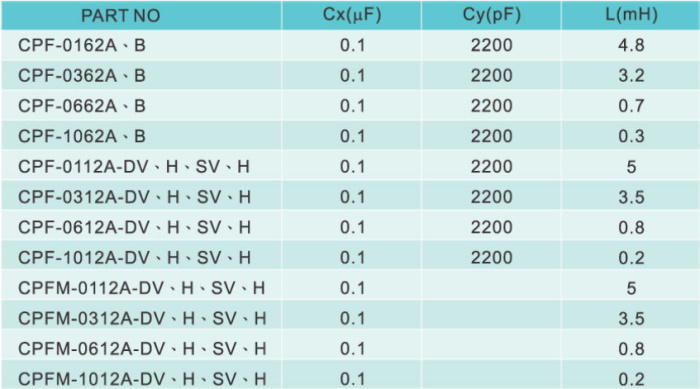

COMPONENTS
SPECIFICATIONS
1. Maximum Leakage Current Each Line to Ground @115VAC 60HZ: 0.4mA (2200) @250vac 60HZ: 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60HZ 4. Rated Voltage: 115/250VAC 5.Temperature Range: -25¢J To +85¢JHPF
