¡´Two-Stage filter are designed for providing high performance in suppressing both line-to-line and line-to-ground noise. ¡´These filters are enclosed with metal case and output terminals using the faston- tab.

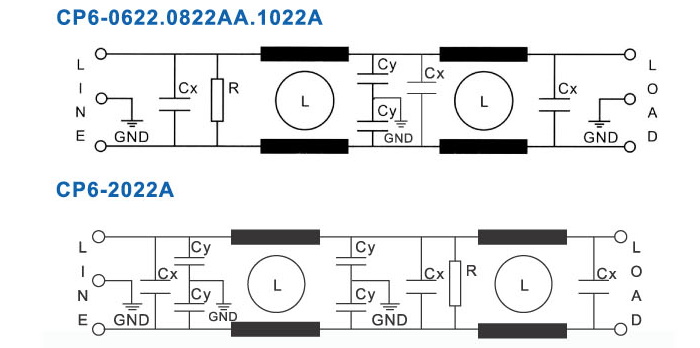

CIRCUIT

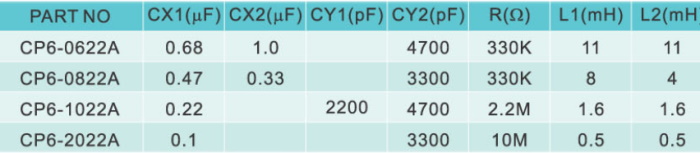

COMPONENTS
SPECIFICATIONS
1. Maximum Leakage Current Each Line to Ground @115VAC 60Hz: 0.3mA (3300) @250VAC60Hz: 0.6mA (3300) 0.4mA (4700) 0.8mA (4700) 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60Hz 4. Rated Voltage: 115/250VAC 5.Temperature Range: -25¢J To +85¢J HPF
