FEATURES

1.    Designed for high voltage of power supplies used mostly in the semiconductor industry.

2.    Four M5 threaded holes in the top.

3.    Complete RoHS-Compliant materials and production process.

4.    UL & TUV safety approvals pending.

5.    Custom specific versions on request.

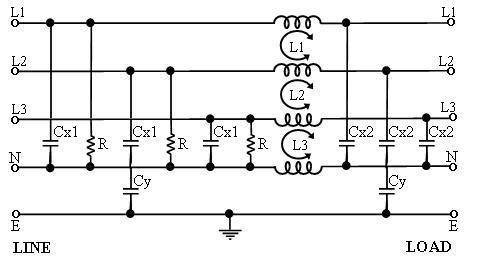

CIRCUIT

SPECIFICATIONS

1. Maximum Leakage Current Each

   Line to Ground @250Vac 60Hz: 0.8mA Max.

2. Hipot Rating

   Line to Ground: 2700Vdc/2Sec. Line to Line: 1700Vdc/1Sec.

3. Operating Frequency: 50/60Hz

4. Rated Voltage: 250Vac/440Vac

5. Temperature Range: -25℃ to +85℃ HPF

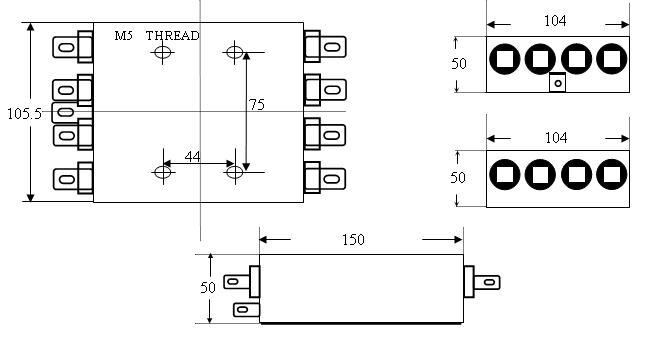

DIMENSION

NOISE ATTENUATION
