POWERTEK P/N: JC1-0612A

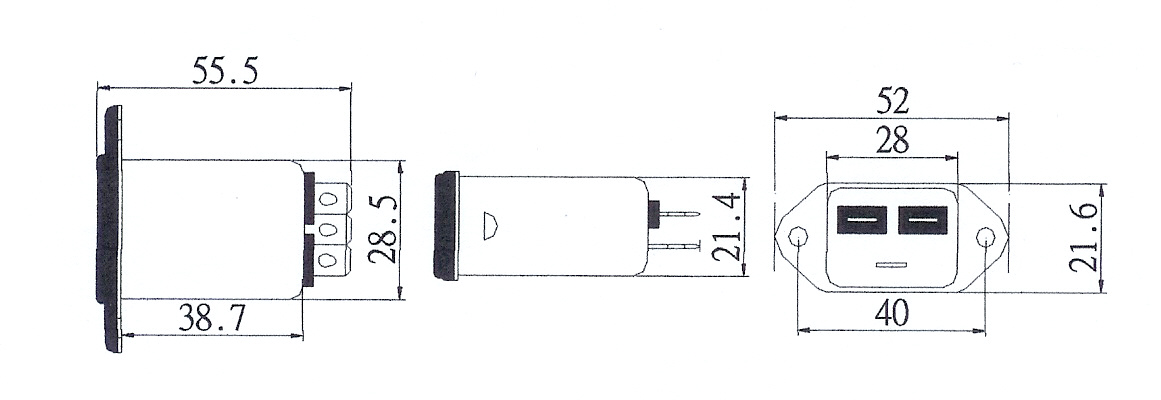

PHYSICAL DIMENSION:

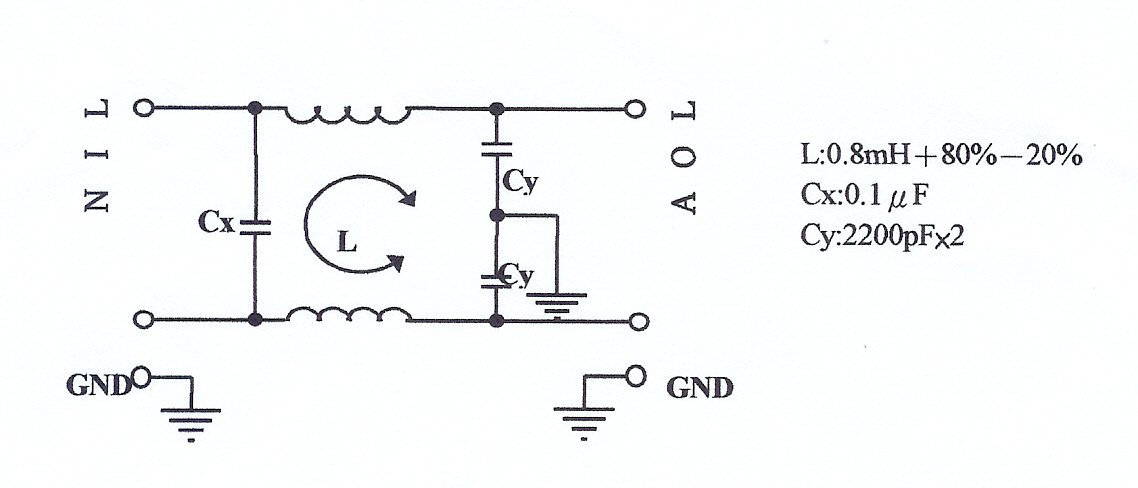

SCHEMATIC:

ELECTRICAL CHARACTERISTICS:

1-1.VOLTAGE RATING              :115/250Vac

1-2.CURRENT RATING

            AT 115Vac           :6A RMS Max

            AT 250Vac           :6A RMS Max

1-3.OPERATING FREQUENCY         :50/60Hz

1-4.LEAKAGE CURRENT             :EACH LINE TO GROUND

　　　　   ＠115Vac 60Hz       :0.25mA  Max

            @250Vac 60Hz       :0.5mA  Max

1-5.HIPOT RATING

            LINE TO GROUND      :2700VDC/2SEC

            LINE TO LINE        :1700VDC/1SEC

1-6.TEMPRATURE RANGE            :-25 TO +85℃HPF
