●Designed for general purpose to suppress. ●Power Entry modules filter with integrated Power Switch and Fuses. ●CPFM type is especially used in medical equipment. ●B type has with LED indicator.

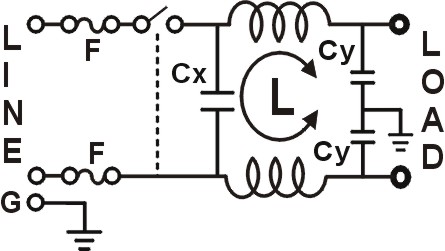

CIRCUIT

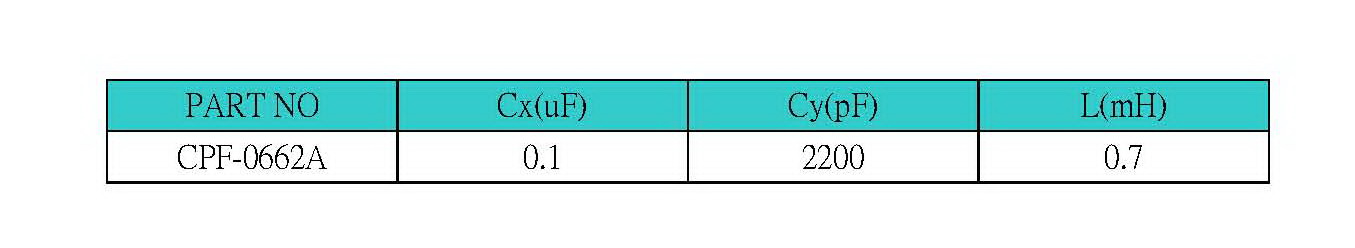

COMPONENTS

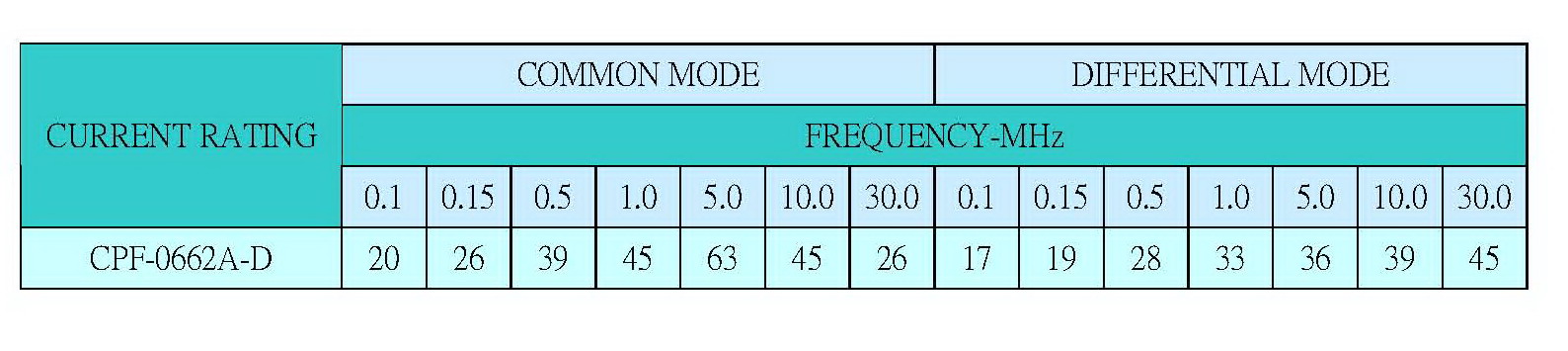

SPECIFICATIONS
1. Maximum Leakage Current Each Line to Ground @115VAC 60HZ: 0.4mA (2200) @250vac 60HZ: 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60HZ 4. Rated Voltage: 115/250VAC
