●Designed for general purpose to suppress line-to-ground(conducted)interference in an economical size at your benefits. ●These filters are enclosed with metal case. ●On JC4's inlet IEC 320 and outlet faston-tab are easy assembly for large power machine for JC4-1652 A/C. ●Safety and construction are in compliance with UL,TUV standards.

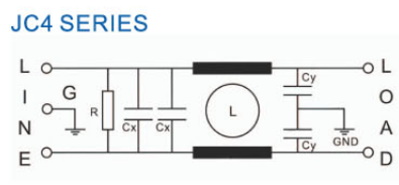

CIRCUIT

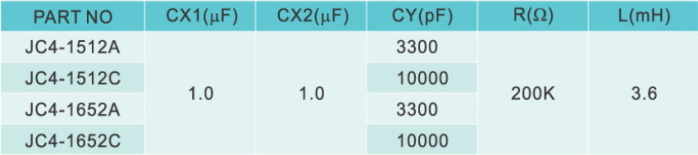

COMPONENTS
SPECIFICATIONS
1. Maximum Leakage Current Each Line to Ground @115VAC 60Hz: 0.75mA (3300) @250VAC60Hz:1.5mA (3300) 1.75mA (10000) 3.5mA (10000) 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60Hz 4. Rated Voltage: 115/250VAC 5.Temperature Range: -25℃ To +85℃ HPF
