●Designed for general purpose to suppress line-to-ground(conducted)interference in an economical size at your benefits. ●These filters are enclosed with metal case of various termination styles for mounting on any equipment.

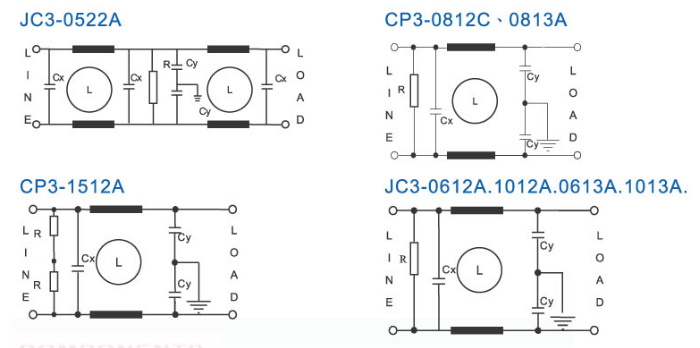

CIRCUIT

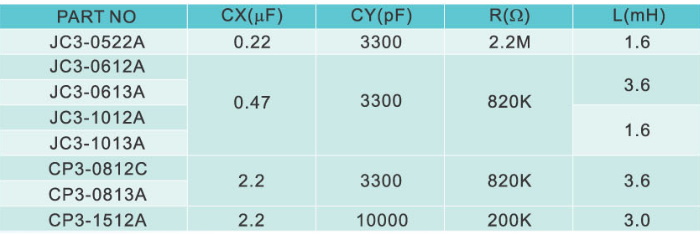

COMPONENTS
SPECIFICATIONS
1. Maximum Leakage Current Each Line to Ground @115VAC 60Hz: 0.4mA (3300) @250VAC 60Hz: 0.75mA (3300) 0.5mA (10000) 0.9mA (10000) 2. Hipot Rating Line to Ground: 2700VDC/2SEC Line to Line: 1700VDC/1SEC 3. Operating Frequency: 50/60Hz 4. Rated Voltage: 115/250VAC 5.Temperature Range: -25℃ To +85℃ HPF
